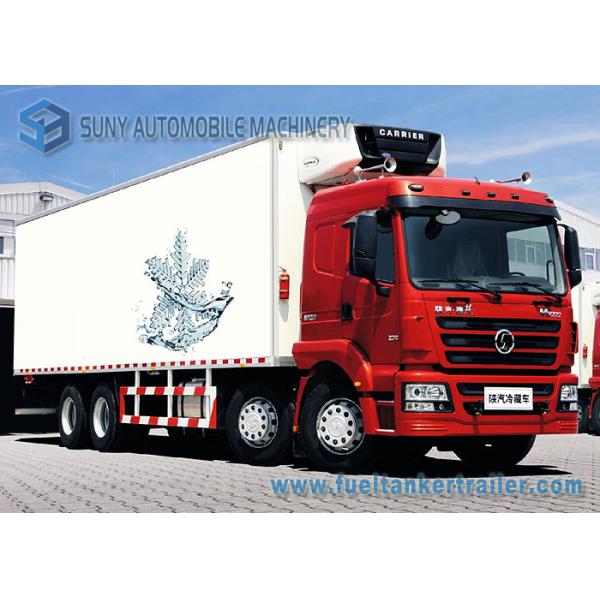

Box 50 Cubic frozen truck rental Shacman 8x4 Heavy Cooling Van Truck 260 HP

Product Categories

Hubei Suny Automobile And Machinery Co., Ltd

Contact Now

Box 50 Cubic frozen truck rental Shacman 8x4 Heavy Cooling Van Truck 260 HP

Name: Box 50 Cubic frozen truck rental Shacman 8x4 Heavy Cooling Van Truck 260 HP
Brand: SUNY
Price: 45 USD

Quality Box 50 Cubic frozen truck rental Shacman 8x4 Heavy Cooling Van Truck 260 HP for sale

Brand Name : SUNY

Model Number : SX1314

Certification : CCC, ASME, BV, SGS, etc

Place of Origin : China

MOQ : 1 unit

Price : USD 45,000 ~ 78,000 / Unit

Supply Ability : 500 Units / Month

Delivery Time : 15 ~ 20 working days

Packaging Details : After Waxing by Container , RO-RO , Bulk Freighter

Cargo Body Size : 9500*2330*2490 mm

Cargo Body Material : FRP inside & outside of the van, polyurethane as the insulation

Cargo body thickness : 80mm

Door : Single Rear Door , Optional Side Door

Temperature Range : -18C to 0°C

Engine : 191 kw / 260 hp

Displacement (lit) : 9.726

Number of gears : 9 forward gears & 1 reverse

Brake System : Air braking

Tire : 12.00R 20 Radial Tire

Cabin : D long F3000 / M3000 Half row, with A/C

Contact Now

Box 50 Cubic frozen truck rental Shacman 8x4 Heavy Cooling Van Truck 260 HP

8x4 Shacman Refrigerated trucks, Refrigerator Trucks, Frozen Truck , Reefer Van Truck , Cooling Box Truck , Insulation Van Truck (no refrigerator unit)

Thickness: FRP inside & outside of the van, polyurethane as the insulation.

Stainless steel, Q235A steel sheet or aluminum are all optional.
Refrigerators chosen from:
South korean Hanya, HuaSu.
American Thermoking, Carrier.
Chinese Xinfei, Kingbo, etc.

Temperature reaches from -18°C to 0°C
Total capacity: approx. 30000 KG ~ 40000 KG ~ Max .45000 KG
Other spares like hooks, bottom slot, shelves, extra doors, etc. are all optional

Products Technical Specification
Type	260hp 8*4 Refrigerated Van Truck
Brand	Shacman
Cab	One and half row
Vehicle Description
Overall dimensions(mm)	1199025503990
G.V.W (kg)	31000
Curb weight(vehicle) (kg)	12930
Loading capacity (kg)	25000
Max speed (Km/h)	99
Engine Description
Engine model	WD615.56
Maximum power	191kw / 260hp
Displacement (lit)	9.726
Chassis Description
Chassis Model	SX1314BL366
Wheel base(mm)	1800+4575+1350
F/R track base(mm)	2011/1860
F/R overhang(mm)	1485/2780
Approach/Departure angle(°)	20/11
Spring plate	10/10/12+8
Type of fuel	Diesel
Gear box	9-speed with over drive
Brake system	Air braking
Operation control system	Power Steering
Electric system	24V
Tyres&Tire quantity	12.00R20 & 12+1
Cargo Body Description
Dimension(mm):950023302490 Material: the polyurethane foam between the inner-outer color plate Independent refrigeration unit: equipped with the DS-500S,Hanya brand Temperature range: -18°C Heat preservation layer:8cm

Box 50 Cubic frozen truck rental Shacman 8x4 Heavy Cooling Van Truck 260 HP
